- Builder/Designer
Year: 2010
Builder: Robertson & Caine
Designer: Morrelli & Melvin
Construction: GRP
- Dimensions
Length: 38 feet
Beam: 6.04 meter
Min Draft: 1.05 meter
Max Draft: 1.05 meter
Length Overall: 11.43 meter
Length at Waterline: 11 meter
- Engines
No. of Engines: 2
Make: Yanmar
Model: 3YM30
Fuel Type: Diesel
Hours: 250SMO
Total Power: 58 hp
Propeller Type: 2 Blade
- TANKS
Water: 1 x 780 l
Fuel: 1 x 350 l
- Accommodation
Single Berths: 2
Double Berths: 4
Cabins: 4
Heads: 2
- Location:
MARMARIS, Turkey
ACCOMMODATION
This Leopard 38 catamaran sleeps 10 in 4 cabins and with single berths in the 2 bows. These can also be used for storage.

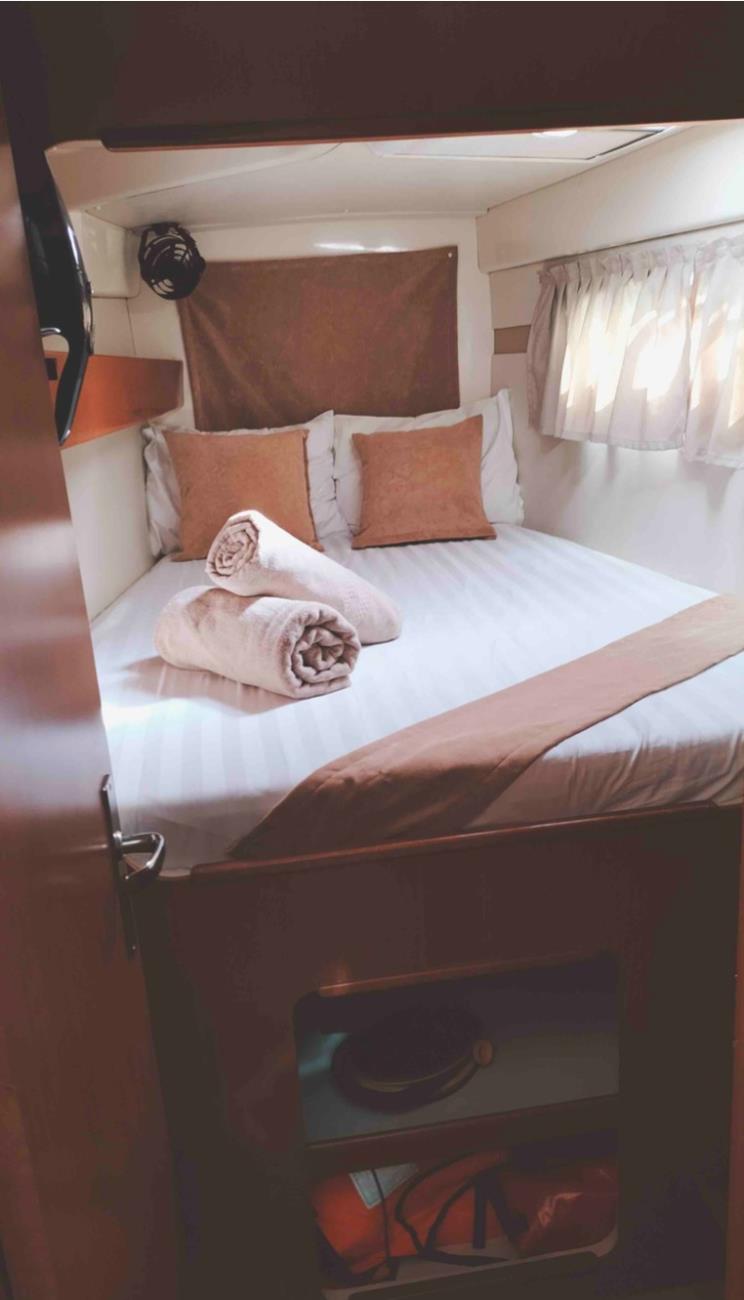

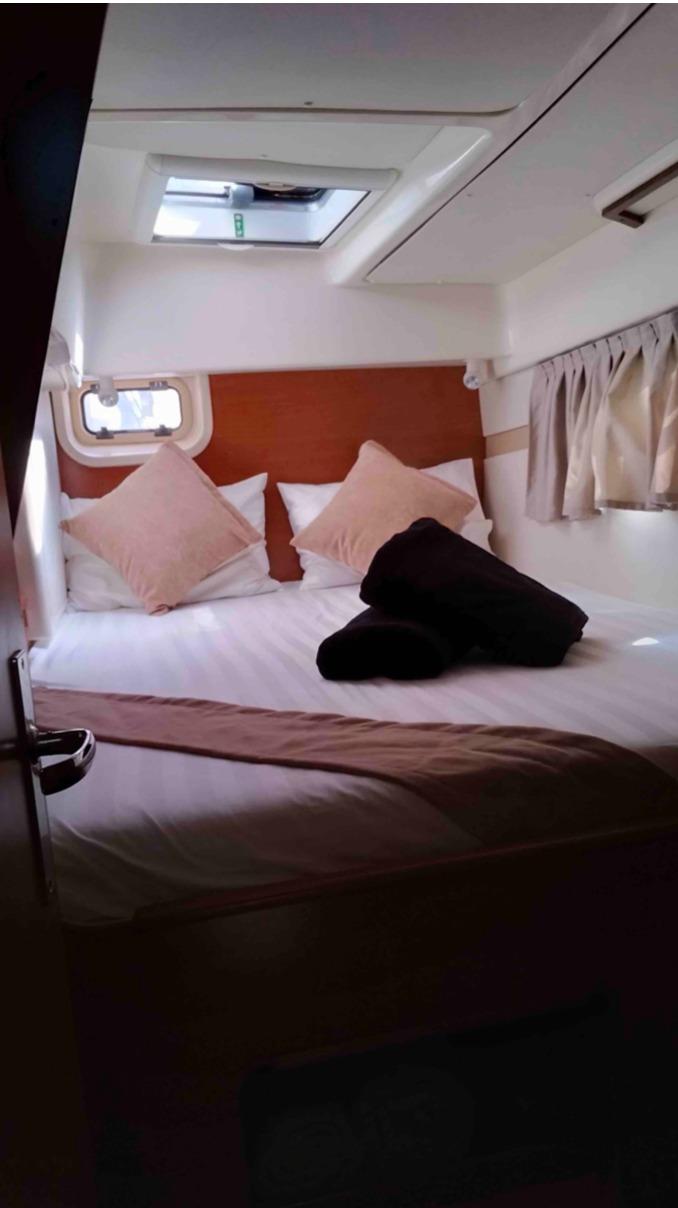

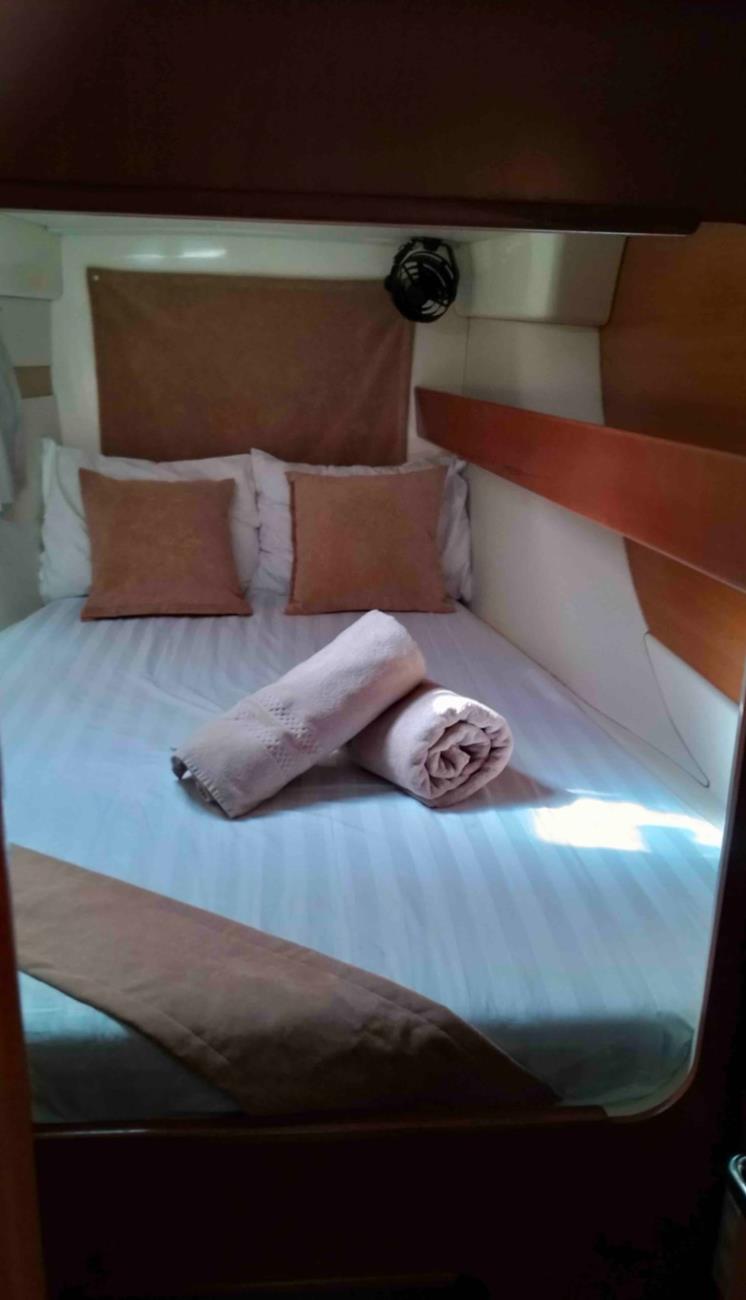

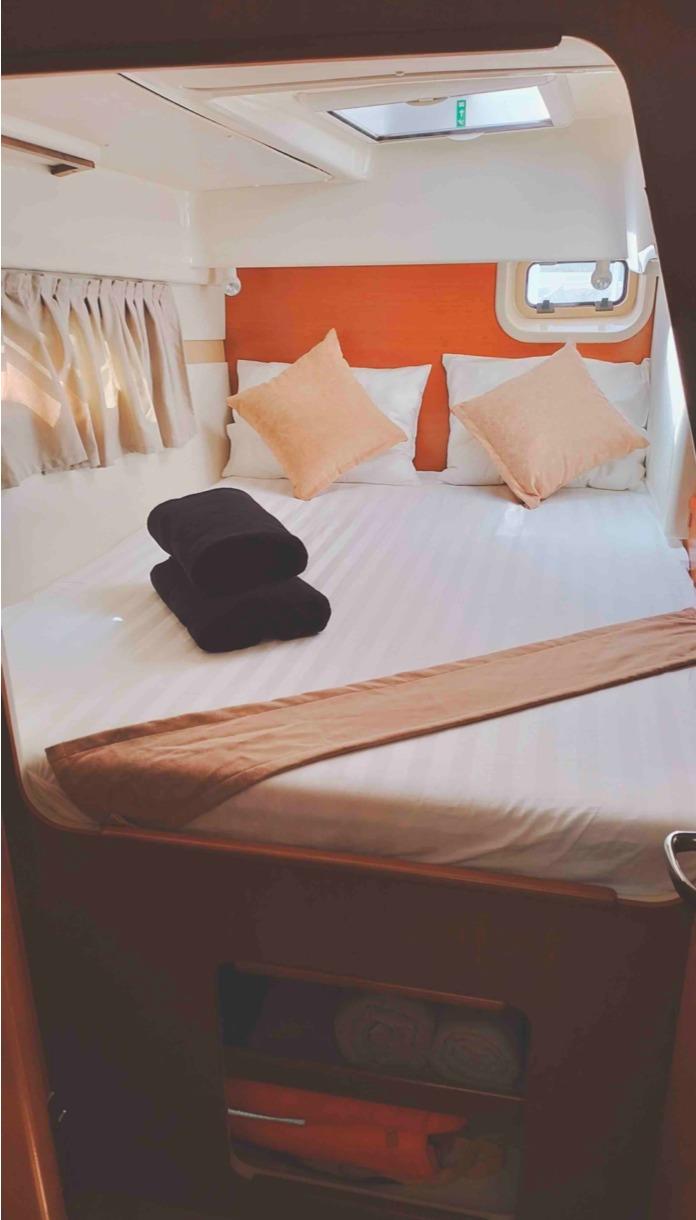

Each hull contains 2 roomy double cabins with hanging and shelving cupboard space, a single berth/storage area in the bow and a spacious shared heads & shower compartment amidships. Upholstery is in navy & cream striped microfibre in the cabins and cream vinyl in the saloon area, and is in good condition throughout.
Interior construction is of moulded laminate with beech joinery & synthetic flooring. Fans are mounted in the cabins & saloon.
The galley and saloon seating area are housed at deck level in a spacious nacelle area. The U-shaped galley is on the port side, and is equipped with an Force 10 gas cooker with oven & grill, plenty of storage space and a stainless steel sink. Two large drawer-opening fridges are located opposite the galley beneath the fuse panel.

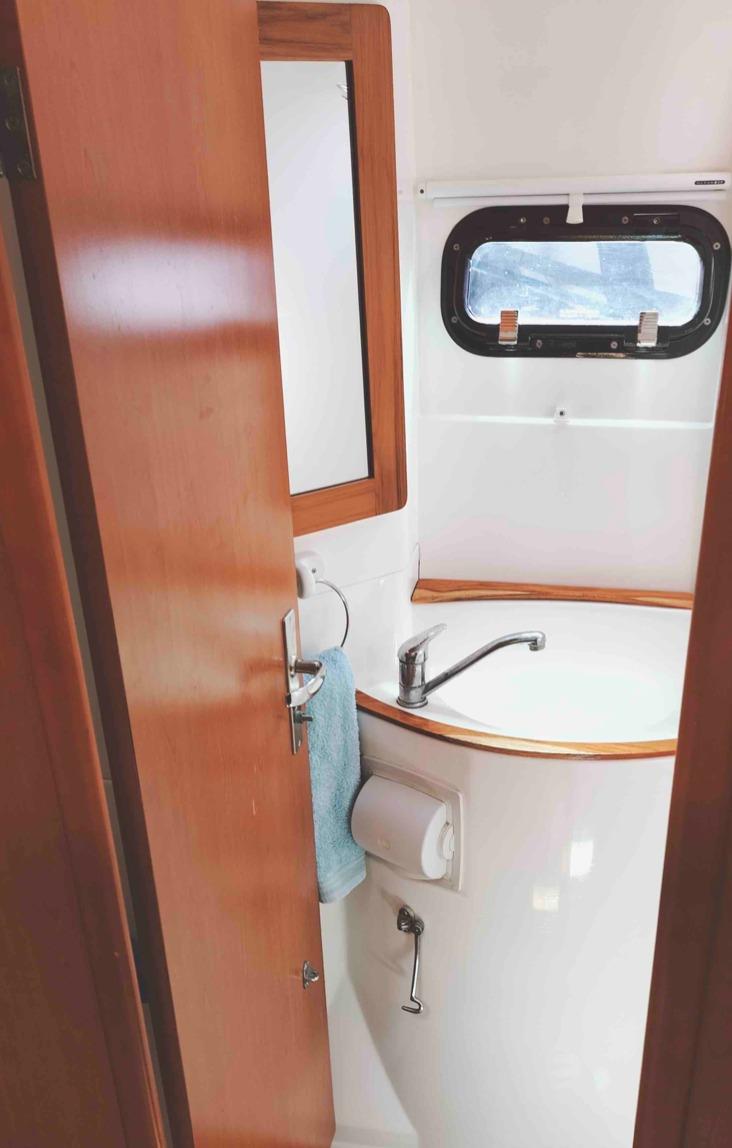

Both heads are equipped with a Jabsco toilet, holding tank, hand basin, shower & mirror, and are large enough to feature a separate shower stall inside.
There is hot & cold pressurised water in galley and heads, and a cold water shower in the cockpit.
MECHANICAL SYSTEMS
2 x 29hp Yanmar 3YM30, 3 cylinder diesel engines.
Engine hours: 250(stbd)SMO & 245(port)SMO 30 APRIL 2023.
Sail drive units with fixed 2-bladed propellers.
ELECTRICAL SYSTEMS
2 x 60Ah engine start batteries. 3 x 200Ah GEL batteries.NEW 2023 UNDER WARANTY 2 YEARS 12v on board systems. 240v shore power connection with cable. 12v refrigeration system.
2 x alternators & battery charging relay NEW VICTRON BATTERY CHARGER 12V 40AMP 2023. Alternators serviced 2023

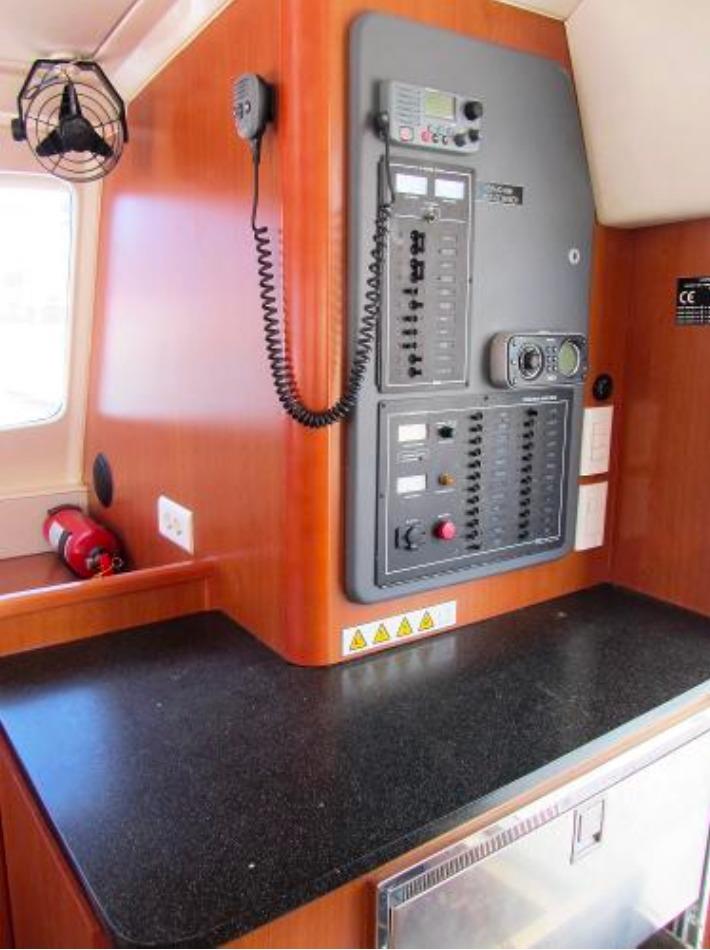

2 solar panels on hard top bimini. 12v socket at chart table. 2 pin sockets at chart table, in cabins and in galley & saloon.
SPARS & SAILS (REINSTALLED BY NORTH SAIL ON MAY 17TH 2023 AFTER FULL SERVICE)
Fractional sloop rig with rigid vang Z Spar anodised aluminium mast, boom & crossbeam Profurl genoa furling drum & foil Stainless steel 1 x 19 wire standing rigging Braided rope running rigging led to helm position Fully battened classic slab reefing mainsail Roller furling genoa with red UV protection strip Lazyjack mainsail stowage system with integral blue canvas sail bag
DECK EQUIPMENT
2 x self-tailing Harken 44 two speed winches on coach roof at helm position. 2 x self-tailing Harken 40 two speed winches on the mast.
Adjustable genoa tracks on the coach roof.
Deck organisers on the coach roof.
Main sheet traveller on hard top bimini.
NAVIGATION EQUIPMENT
Raymarine Ray55E VHF radio Raymarine ST60 Tridata depth sounder (speed data taken from chart plotter) Raymarine ST6002 autopilot Raymarine C80 chart plotter (charts not included) Raymarine ST60+ wind instruments Plastimo Contest 130 steering compass Navigation, mooring & steaming lights
SAFETY EQUIPMENT
10 man canister life raft 3 x dry powder fire extinguishers Fire blanket 10 x life jackets & safety harnesses Flare pack Emergency tiller Manual and electric bilge pumps in each hull Horseshoe lifebuoy Floating distress light Guard wires, pulpit & pushpit Fog horn. Torch.
Basic first aid kit
Sony radio/CD player with interior & external speakers Outboard engine storage bracket mounted Dinghy storage davits on transom (inflatable dinghy new 2022) Swim ladder & cold water shower on transom Hard top bimini cockpit cover Boat hook. 4 x warps. 10 x fenders.
Cutlery, crockery & utensils for 10 people Please note: the dinghy, outboard engine shown on the photo is not the same a new dinghy is now installed;
GROUND TACKLE
Delta bow anchor with approx 90m chain & 5m warp. Chain replaced in 2023 Kedge anchor with approx 10m chain & 10m warp.
Quick 1,000w electric anchor windlass with 10mm chain gypsy.
HISTORY & CONSTRUCTION
Sam has been chartered by Sunsail from new in Turkey until 2015. The boat has been stored on land from november 2015 to July 2020. The boat is back in the water in August 2021 following a complete refurbishment
• Hull no: ZA-RACA4003H910
• Flag: French
• Build & model
year: 2010
• GRP construction of hulls & deck
• Spade rudders. Sacrificial skeg keels
• Single steering position
